Configuring Spark Applications to Write and View Logs

Perform the following steps to configure the Spark Application CR to write logs to PVC:

1. Configure the volumes options under spec section of SparkApplication as follows:

   volumes:
     -name: <some-name>
     persistentVolumeClaim:
       claimName:<same-volume-name-as-in-history-server>

   For example:

   volumes:
     -name: data
     persistentVolumeClaim:
       claimName: spark-pvc


   You must ensure the claimName is the same name as ExistingClaimName in values.yaml file of the Helm chart.

2. Configure the volumeMounts option under Driver and Executor pods as follows:

   volumeMounts:
     -name:<some-name>
   mountPath: "<same-path-as-event-directory-on-history-server>"


   For example:

   volumeMounts:
     -name: data
     mountPath: "/mnt/hs-logs"


   You must ensure the mountPath is the same path as eventsDir path in values.yaml file of the Helm chart.

3. Configure the sparkconf options of SparkApplication for Spark Event Log Service as follows:

   "spark.eventLog.enabled": "true"
   "spark.eventLog.dir": "<same-path-as-event-directory-on-history-server>"


   For example:

   "spark.eventLog.enabled": "true"
   "spark.eventLog.dir": "file:/mnt/hs-logs"


4. Run the following command to submit the Spark Application:

   kubectl apply -f <path-to-example-spark-application-CRs>

Run the export command to get the node IP and node port to navigate to the Spark web UI.

export NODE_PORT=$(kubectl get --namespace {{ .Release.Namespace }} -o jsonpath="{.spec.ports[0].nodePort}" services {{ include "spark-hs-chart.fullname" . }})

export NODE_IP=$(kubectl get nodes --namespace {{ .Release.Namespace }} -o jsonpath="{.items[0].status.addresses[0].address}")

echo http://$NODE_IP:$NODE_PORT

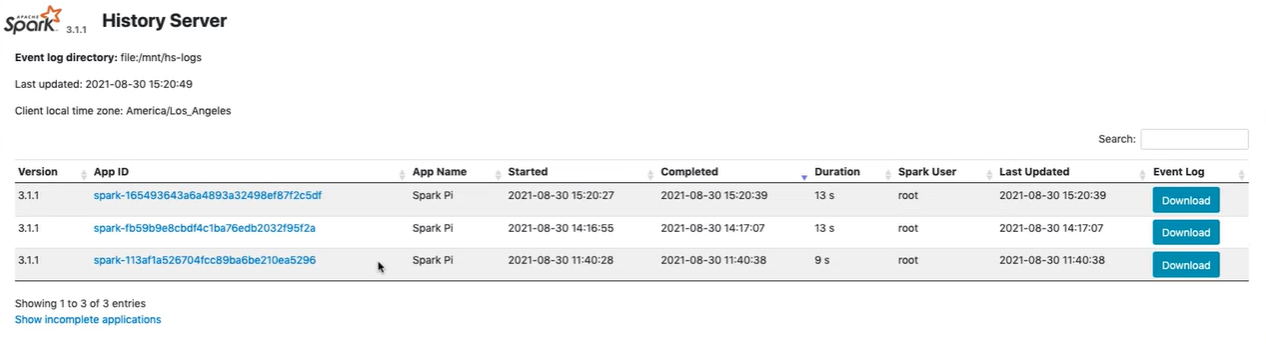

Access the Spark History Server web UI using the following URL:

http://<NODE_IP>:<NODE_PORT>

Monitor the status of all applications using the following URL:

http://<NODE_IP>:<NODE_PORT>/api/v1/applications

View the details of single application using the following URL:

http://<NODE_IP>:<NODE_PORT>/api/v1/applications/<spark-job-id>
