Viewing Model Information

This topic describes viewing model information in HPE Ezmeral ML Ops, including model details, logs, events, and deployment events.

Prerequisites

Required access rights: Project Administrator or Project Member

Procedure

  1. Navigate to the project in the new UI, as described in HPE Ezmeral Runtime Enterprise new UI.
  2. Select View All on the Deployed Models panel. The Deployed Models screen opens.

    Deployed Models screen
  3. From the Deployed Models screen, the following information is available.

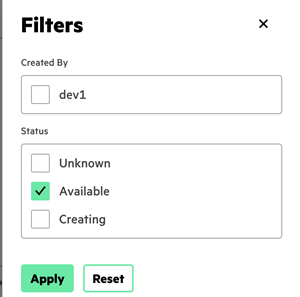

    • To filter models based on their deployment status and the user who created the model, select the Status column. The Filters side drawer opens:
      Status Filters side drawer
    • The Model Details side drawer displays all instances of a model and their container statuses.

      To open the Model Details side drawer:

      1. Open the action items dropdown menu, and select View Details.
        Deployed Models action menu
      2. The Model Details side drawer opens.
        Model Details side drawer
        • To display detailed information about a deployed model pod, hover your pointing device over the pod listing:
          Model Details pod information
        • To view detailed restart information for a pod, hover your pointing device over the Restarts column on a pod listing:
          Model Details restarts information
      3. From the Model Details side drawer, you can open the action items dropdown to access the following information:
        • The View Logs side drawer displays logs for a model.
          View Logs side drawer
        • The View Events window displays a log of events for a model.
          View Events window
        • The View Conditions window displays a list of conditions of the deployed pods of a model.
          View Conditions window
        • If a model does not start because of resource issues, you can view a table of deployment events for a model.
          Deployment events log
